OIM-01 AUTOMATIC SPRAYING MACHINE

Product Categories
OIM-01 AUTOMATIC SPRAYING MACHINE

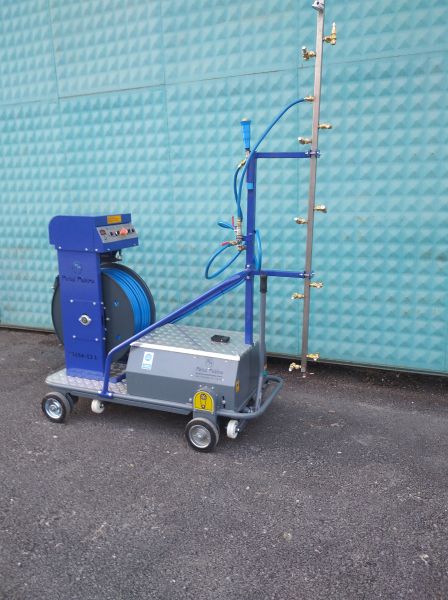

Battery Powered METALMAK OIM-01 Spraying Machine; In greenhouses, it distributes the pesticide taken from the pesticide tank to the plants evenly with the hose on it, ensuring regular and balanced spraying of the plants.

The OIM-01 model is suitable for use in greenhouses with rail pipes and will help you complete the spraying process in a practical way.

With its simple structure and easy maintenance feature, it is a perfect choice for those looking for a functional and affordable product.
Save labor and time with the OIM-01 model.


It offers you a faster stable spraying with a maximum speed of 55 meters / minute on the rail.
The machine has a battery of 2x135 amps.
The upper sheets of the machine are covered with non-slip patterned aluminum sheet material and there is a durable movement pedal with an aluminum body.



There is a braking feature on both the movement and the hose collection drivers in the machine, and a soft braking feature is activated when the user takes his foot off the pedal.
On the control panel, there are stepless speed pots belonging to the hose winding and machine movement group, forward-backward direction determination button, a button where you can activate / deactivate the hose winding, a voltage display screen where you can monitor the charge and an emergency stop button.



The charger is placed in a convenient place on the machine. Thanks to the indicator light on the charger, you can see the charging status of the machine. When the charging lamp changes from red to green, it means that the charging process is complete.
Our chargers have the ability to cut off electricity as soon as the batteries become fully charged, preventing the negative effects of overcharging.
There is driver card protection on the machine. If the machine is forced, it protects the card and prevents the card from failing. You can easily activate the card again with the reset button on the machine.



Model OIM-01 is free from protruding edges, sharp corners and is designed not to damage plants during operation.
There are 14 nozzles with 0.8 mm head on the machine.
OIM-01 also has 1 hand gun that you can put spraying yourself.
OIM-01 has a height-adjustable spray pole.



The transition of the machine to the side rail is thanks to the lifting lever and the steering is easy thanks to the polyamide wheels coming out of the bottom.






MODEL  OİM-01
ENERGY SUPPLY BATTERY / 2 X 12 V-135 A
HYDRAULIC ENGINE NOT AVAILABLE
MOVEMENT ENGİNE 400 W DC X 1
HOSE WINDING MOTOR 250 W DC X 1
CHARGER(INTERNAL) AVAILABLE
ENERGY REQUIRED FOR CHARGING 220 VOLT / 50 Hz
CHARGING CABLE AVAILABLE
WORKING TIME (Depends on Usage) 1 DAYS
MAXIMUM SPEED OF CONCRETE FLOOR 120 m / dak
MAXIMUM SPEED ON RAIL 55 m / dak
HOSE WINDING CAPACITY 110 metre
STANDARD HOSE WINDING SIZE
(SPECIAL WINDING CAN BE MADE FOR YOU IN DIFFERENT SIZES.)
75 metre
MACHINE WEIGHT 285 kg
STANDARD WORKING RAIL PIPE DIAMETER
(SPECIAL PRODUCTION IS MADE FOR YOU IN DIFFERENT RAIL SIZES.)
 51 mm
STANDARD WORKING RAIL OUTER-OUTER DIMENSION
(SPECIAL PRODUCTION IS MADE FOR YOU IN DIFFERENT RAIL SIZES.)
600 mm
TRANSFER TO SIDE RAIL MANUEL(scroll handle)
SPEED MODE ADJUSTABLE
CHARGING INDICATOR AVAILABLE
SPRAYING HAND GUN AVAILABLE
USER ITEM BOX NOT AVAILABLE
 PRESSURE INDICATOR AVAILABLE
SPRAYING POLE HEIGHT
(SPECIAL PRODUCTION IS MADE FOR YOU IN DIFFERENT SIZES.)
2650 mm
ADJUSTABLE SPRAYING POLE HEIGHT AVAILABLE
SPRAYING NOZZLES TYPE 0,8 mm Pislik Tutuculu Nozul
NUMBER OF SPRAYING NOZZLES
(SPECIAL PRODUCTION IS MADE FOR YOU IN DIFFERENT QUANTITIES)
14 Pieces
LED HEADLIGHT OPTIONAL
PAINT ELECTROSTATIC POWDER COATING
GUARANTEE 1 YEAR
OİM-01 Otomatik İlaçlama Makinası
