MİS-04 Manual Clothesline Wrapping Machines
MİS-04 Manual Clothesline Wrapping Machines
MIS-04 model allows wrapping in desired dimensions thanks to its adjustable conical ends.
Since there is no electrical system on the machine and with its small portable structure, it is a product that you can put and use anywhere.
MIS-04 The clothesline wrapping machine is a product you can choose with its functionality and reasonable price.
There are 4 clothesline wrappings heads on the machine that you can wrapping at the same time.

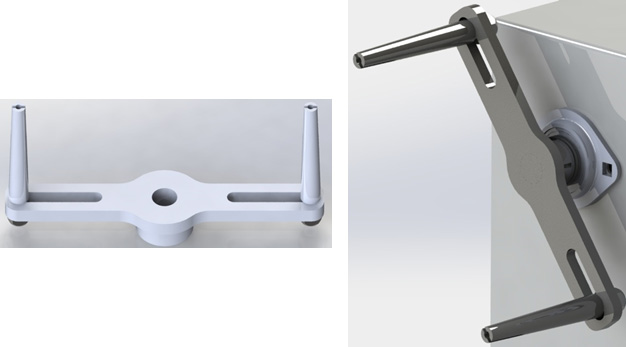

Since all the heads of the MIS-04 wrapping machine are adjustable, it offers the ability to easily wrap clotheslines in various sizes.
Since the MIS-04 model is a model where you can give manual movement, wrapping can be done by means of a rotating lever. Thanks to the gear transfer, you can turn the slewing arm comfortably without fatigue.
Since the MIS-04 model is a model that you can use anywhere thanks to its portable structure, various fixing holes are placed on the bottom surface of the machine. If you want, you can fix the machine to any point you want by using these holes.
The MIS-04 manual clothesline winding machine also has wrapping rope tensioning place.
| MODEL | MİS-04 |
| ELECTRIC ENERGY | NOT AVAILABLE. |
| YARN TO BE WRAPPED (IF YOU WANT TO WRAP A DIFFERENT PRODUCT, LET OUR KNOW) |
CLOTHESLINE |
| WRAPPING MOTION | MANUEL WRAPPING(CRANK) |
| INSTANT WRAP | 4 HOOK |
| WRAPPING TYPE | SINGLE WRAPPING |
| WRAPPING SYSTEM | NOT AVAILABLE |
| ADJUSTABLE HEAD ACCORDING TO WIRE SIZE | AVAILABLE |
| WIRE SIZES THAT CAN BE WRAPPED | ALL WİRE SİZES BETWEEN 12-24 cm |
| STANDARD WRAPPING HOOK (In standart, it is made according to the 20 cm rope winding size, and if you want a different length, please let us know separately.) |
20 cm |
| HOOK WRAP CENTER HEIGHT | 321 mm |
| WRAPPING ROPE TENSIONING PLACE | AVAILABLE |
| MOTION WHEELS | NOT AVAILABLE |
| GROUND FIXING HOLES | AVAILABLE |
| MACHINE WEIGHT | 34 Kg |
| COIL INSTALLATION RODS | NOT AVAILABLE |
| 180 DEGREE ROTATABLE CONTROL SCREEN | NOT AVAILABLE |
| PAINT | ELECTROSTATIC POWDER COATING |
| GUARANTEE | 24 AY |
